The subsurface contrast between Montgomery's historic downtown riverfront and the rapidly developing eastern Pike Road corridor is striking. Near the Alabama River, dense alluvial deposits and deep Cretaceous formations create a velocity profile entirely different from the weathered Piedmont metamorphic rocks found just ten miles east. Seismic tomography captures these transitions by measuring P-wave and S-wave travel times along multi-channel geophone arrays, producing a continuous velocity model of the subsurface. This method proves essential where standard borings miss lateral heterogeneities: a limestone pinnacle, a buried channel, or a weathered fracture zone. For projects where soil stiffness governs design, these velocity models complement our CPT testing by extending stratigraphic control beyond the cone tip to full cross-sections. Our field crews deploy 24- and 48-channel seismographs with 4.5 Hz geophones, adapted to Montgomery's summer clay conditions that can dampen high-frequency signals if not properly coupled. The data feeds directly into Vs30 calculations required by the IBC for seismic site class determination.
A tomographic velocity model turns a handful of borehole data points into a continuous 2D stiffness profile—critical where Montgomery's Selma Chalk conceals solution cavities and paleochannels.
How we work
Local considerations
In Montgomery County, we often encounter limestone pinnacles in the Selma Group that a standard drilling program can completely miss, reporting competent chalk at the borehole while a 15-foot-deep dissolution feature sits eight feet away. Seismic tomography closes this gap by imaging the lateral continuity of competent rock, flagging low-velocity zones that correspond to weathered pockets or clay-filled cavities. The risk of overestimating bearing capacity based on sparse borehole data is real—particularly near the Fall Line, where Coastal Plain sediments transition abruptly into Piedmont saprolite. A velocity inversion below 3,000 ft/s in chalk, for instance, almost always indicates compromised rock requiring deeper foundations or pressure grouting. Our processing workflow includes ray-coverage diagnostics, ensuring that every interpreted anomaly is supported by sufficient ray-path density, not an inversion artifact. The resulting models feed directly into liquefaction potential assessments and dynamic soil-structure interaction analyses, reducing the uncertainty that leads to costly over-design or, worse, performance failure during a seismic event.
Video overview
Relevant standards
IBC 2021, Section 1613: Seismic Site Classification based on Vs30, ASCE/SEI 7-22, Chapter 20: Site Classification Procedure for Seismic Design, ASTM D5777-18: Standard Guide for Using the Seismic Refraction Method, ASTM D7400-17: Standard Test Methods for Downhole Seismic Testing, Alabama Building Code, Chapter 16: adoption of IBC with state amendments for seismic provisions
Associated technical services
Vs30 Site Classification Surveys
Multi-channel seismic refraction and MASW surveys for IBC site class determination. We map shear-wave velocity to 100 ft depth, providing the Vs30 value required for structural design in Seismic Design Category B and C structures across Montgomery County.
Karst & Void Detection Tomography
High-resolution refraction tomography with 5 ft shot spacing, optimized to detect dissolution features in the Selma Chalk and Mooreville Formation. Velocity anomalies below 4,000 ft/s are correlated with drilling data to map cavity extent and depth.
Bedrock Ripping & Excavation Analysis
Seismic velocity profiling for heavy civil contractors assessing rippability of Cretaceous-age limestone and metamorphic bedrock. P-wave velocity thresholds per Caterpillar D10R performance charts guide equipment selection and cost estimation.
Typical parameters
Quick answers
What seismic tomography methods are best suited for Montgomery's Selma Chalk geology?

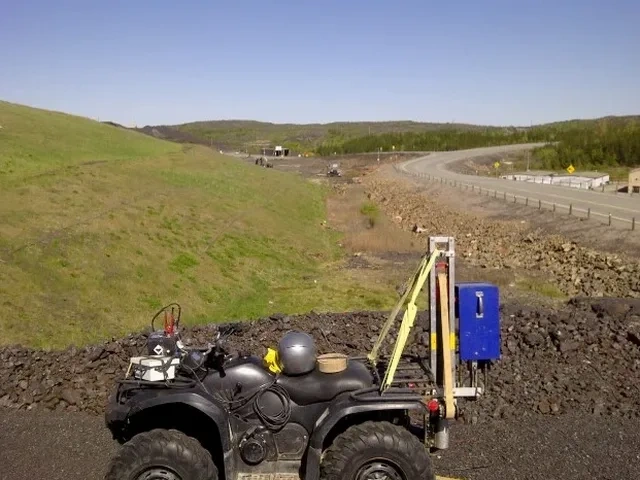

We typically deploy combined seismic refraction and reflection tomography with 4.5 Hz geophones at 10 ft spacing. The refraction component handles the soil-over-chalk interface and top-of-rock mapping, while reflection processing images deeper stratigraphic boundaries within the chalk. First-arrival tomography resolves velocity variations associated with weathering and dissolution features common in the Mooreville Chalk member. Our crews use sledgehammer sources for depths to 80 ft and a weight drop system where deeper penetration is needed.
What is the cost range for a seismic tomography survey in Montgomery, Alabama?
A typical seismic tomography survey in Montgomery, covering one or two 230 ft lines with full processing and a signed engineering report, ranges from US$3,070 to US$4,590 depending on site access, number of shot points, and whether reflection processing is required. Projects needing multiple intersecting lines or very tight shot spacing for karst detection fall at the upper end.
How does seismic tomography integrate with standard geotechnical borings?
The reference range for this service in Montgomery Alabama is US$3.070 - US$4.590. The final price depends on the project scope and volume.
What seismic site class is typical for the Montgomery area?
Montgomery's subsurface varies enough that site class cannot be assumed without measurement. River terrace deposits near downtown often yield Vs30 values in the 600-1,200 ft/s range (Site Class D), while areas underlain by shallow Selma Chalk can reach Site Class C (1,200-2,500 ft/s). The Fall Line transition zone, roughly following I-85, produces the most variability—we have measured Site Class E profiles (Vs30 below 600 ft/s) where thick saprolite overlies Piedmont bedrock on the city's east side. Only a site-specific seismic survey can reliably determine the correct classification.
