Montgomery sits on the fall line between the Piedmont's hard metamorphic rock and the Coastal Plain's expansive, soft chalk and alluvial soils. This geological transition creates pockets of highly compressible ground where standard shallow footings fail to meet differential settlement criteria. The upper Selma Chalk formation, locally known as "rotten limestone," can lose over 60% of its intact strength upon remolding, which makes traditional excavation-and-replace methods unreliable under fluctuating groundwater levels. Stone column design addresses these conditions by installing dense granular columns that reinforce the matrix, accelerate drainage, and transfer loads to more competent strata via lateral confinement. For deeper, more variable profiles, we often pair the S PT drilling campaign with a targeted program of CPT soundings to map the exact thickness of the weak chalk before sizing the columns.
In Montgomery's "rotten limestone" — the Selma Chalk — remolding can destroy 60% of intact strength, making low-displacement stone columns the preferred repair strategy.
How we work
Local considerations
Montgomery's mid-20th-century expansion pushed commercial development into the former floodplains of Catoma Creek and Pintlala Creek, where geotechnical reports from the 1960s frequently omitted deep soil treatment. Foundations in these areas now suffer chronic differential settlement because the thin crust was never designed to support the fill loads placed above the soft chalk. A stone column design that ignores the high sensitivity of the Selma Chalk risks generating excess pore pressure during vibration, temporarily reducing the soil to a liquid state and damaging adjacent brick structures common in the Garden District. The IBC 2021 mandates that ground improvement designs in Seismic Design Category B — which covers all of Montgomery County — demonstrate post-treatment shear strength gain before structural loads are applied, a requirement we satisfy through staged modulus testing and pore pressure dissipation monitoring.
Video overview
Relevant standards
IBC 2021 (International Building Code) – Ground improvement provisions, ASCE 7-22 – Minimum Design Loads for Buildings, Chapter 12 seismic requirements, ASTM D1586 – Standard Penetration Test for post-installation verification, ASTM D2487 – Unified Soil Classification System for chalk and alluvium, FHWA NHI-16-072 – Ground Improvement Methods, vibro-replacement section
Associated technical services
Pre-Design Soil Investigation
Rotary wash borings and CPT soundings through the Selma Chalk to map the exact depth to the Mooreville formation, ensuring columns are socketed into competent bearing material.
Settlement and Bearing Capacity Analysis
Finite element modeling (Plaxis 2D) calibrated with local modulus data to predict total and differential settlement under IBC serviceability limits.
Stone Column Installation and QA/QC

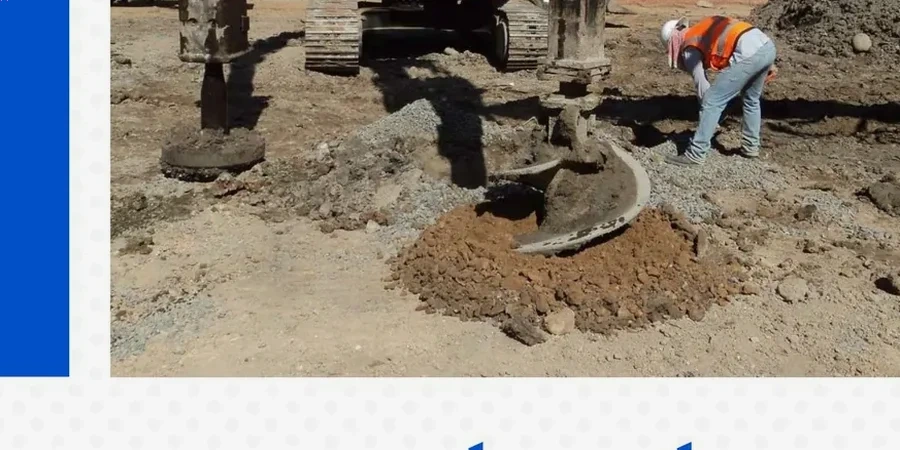

Top-feed vibro-replacement with real-time data-logging of amperage, penetration rate, and stone consumption per linear foot, verified by post-installation SPT.
Modulus Load Testing
Full-scale zone load tests on a group of three columns using a rigid plate and reaction beams, measuring deflection under 150% of design load per ASTM D1143.
Typical parameters
Quick answers
Why is stone column design preferred over deep foundations in Montgomery's chalk?
The Selma Chalk underlying Montgomery is often too stiff for driven piles but too compressible for shallow footings. Stone columns bridge this gap by reinforcing the chalk matrix in place, improving bearing capacity while keeping the load transfer zone shallow. They avoid the high mobilization cost of a pile rig and eliminate the risk of pile refusal on hard chalk lenses.
How much does stone column design and installation cost for a commercial lot in Montgomery?
For a typical commercial building footprint in Montgomery, the combined design and installation cost ranges from US$1.300 to US$6.000 per column, depending on depth, diameter, and stone gradation. A full site program usually falls between US$18.000 and US$75.000 based on the treated area and the number of columns required.
Does the vibration from stone column installation damage nearby buildings?
We monitor peak particle velocity at the nearest structure with a seismograph during the entire installation. In Montgomery's historic districts, we keep PPV below 0.5 inches per second, which aligns with the U.S. Bureau of Mines criteria for plaster and masonry. For sensitive structures, we can pre-trench to isolate vibrations or switch to a bottom-feed system that reduces lateral energy.
What verification testing is required after stone columns are installed?
The IBC requires both modulus load tests on a representative column group and post-treatment SPT borings at offsets from the columns. We typically run two zone load tests per site and take SPT samples at three locations to confirm the replacement ratio and shear strength gain match the design assumptions before the structural slab is poured.
